Rodless Cylinder
MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)
MY1B Series Mechanical Joint Rodless Cylinder represents the basic design of mechanical joint rodless cylinder. Its core lies in transmitting power through a unique internal mechanical coupling method. While ensuring the effective stroke of the piston, it completely eliminates the piston rod structure extending outside the traditional cylinder body, providing a basic solution for compact automation applications.
Core features:
• Wide adaptability specifications: It provides a range of cylinder diameter specifications from Ø10 to Ø100, covering a wide range of load and output demand scenarios.
• Flexible rail guide compatibility: The design can be compatible with a variety of third-party standard rail guide (guide rail) systems that meet the requirements, enhancing its integrated adaptability in complex motion mechanisms.
• Simplified structural design: The structural form that eliminates the external independent rail guide effectively reduces the complexity of the overall components and the installation links, reflecting the simplicity of the design.
• Extreme space utilization optimization: The core design concept focuses on space saving. By removing the piston rod and streamlining the guide structure, the space occupied by the cylinder in the direction of movement is significantly reduced, which is especially suitable for automation layouts with limited installation space.

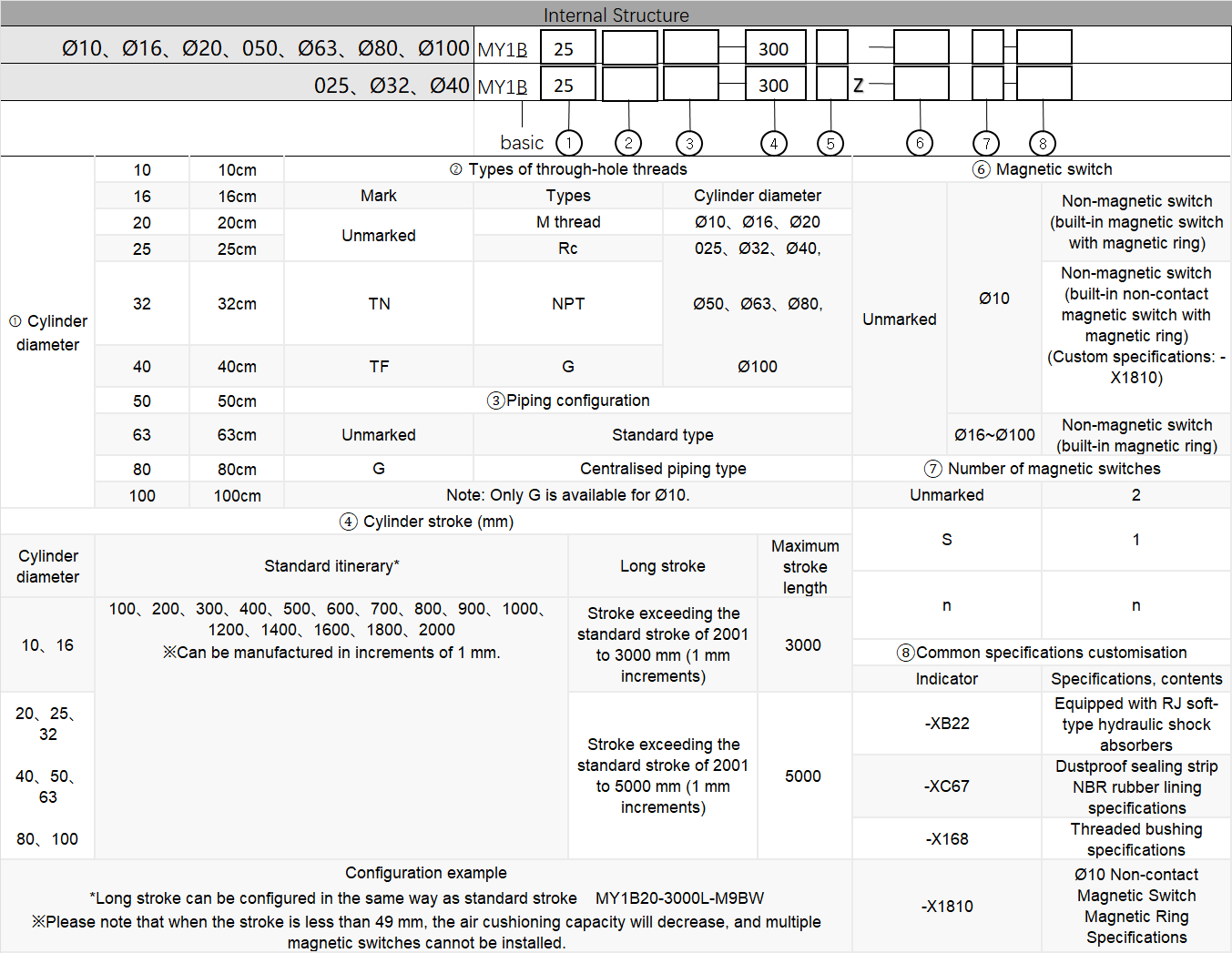

| Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder diameter (mm) | 10 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Fluid used | Air | |||||||||
| Operating mode | Double-acting | |||||||||
| Operating pressure range | 0.2~0.8MPa | 0.15~0.8MPa | 0.1 ~ 0.8MPa | |||||||
| Pressure test pressure | 1.2MPa | |||||||||
| Ambient & fluid temperature | 5~60℃ | |||||||||
| Buffering | Cushioning | Air cushion | ||||||||
| Lubrication | No oil | |||||||||
| Stroke length tolerance | Below 1000 +1.8 / 1001~3000 +2.8 | Below 2700 +1.8, 2701 to 5000 +2.8 | ||||||||
| Pipe diameter | Front/side: M5×0.8 | 1/8 | 1/4 | 3/8 | 1/2 | |||||
| - | Ø4 | Ø6 | Ø8 | Ø10 | Ø18 | |||||
